We've updated the pinouts for the Konekt Dash and Dash Pro. We've had to make some changes to the boards.If you have any questions, head over to our Community Forum.

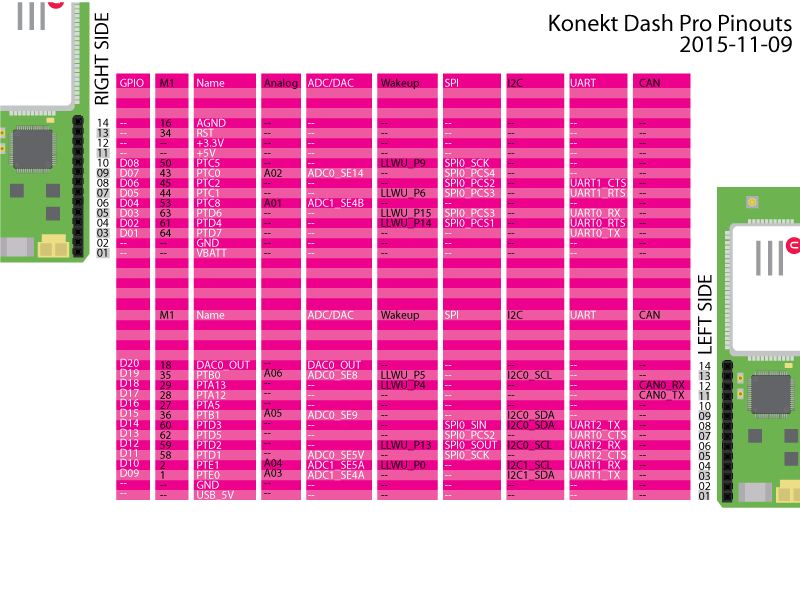

Konekt-Dash-Pro-Pinout
Dash pro screenshot

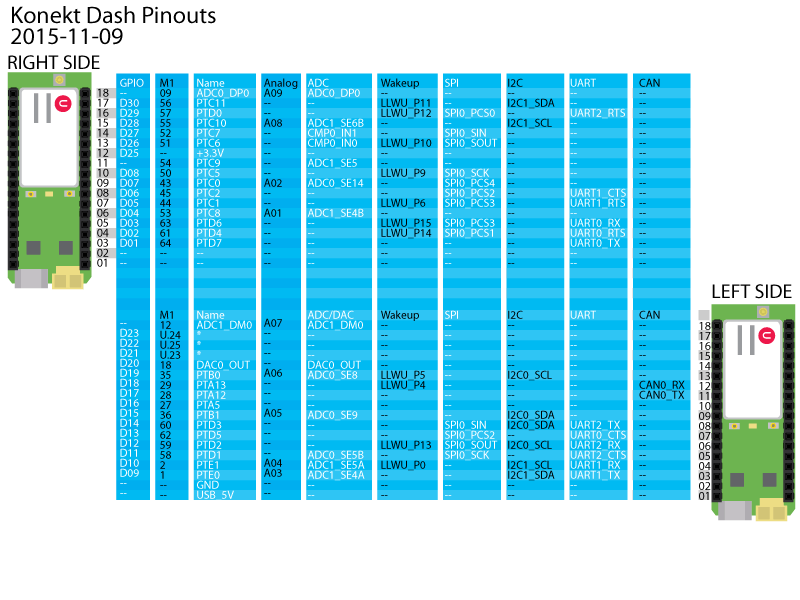

Konekt-Dash-Regular-Pinout
Dash pinouts

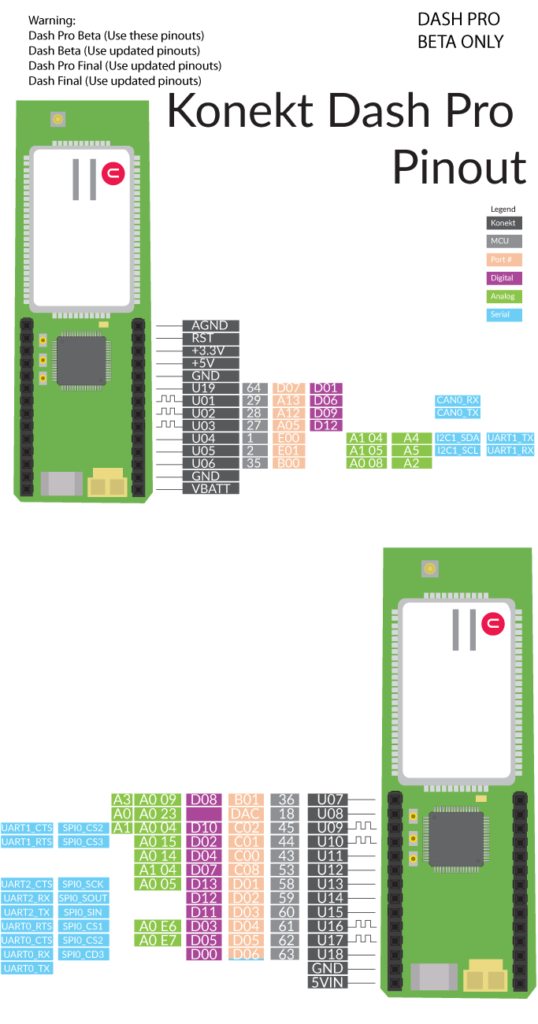

Note: We are including this legacy pinout for our beta users. This is the pinout for the Dash Pro Beta. The pinouts will change to those listed above.

Konekt-Dash-Pro-Pinout-LEGACY_correct
legacy pinouts

Edit: Replaced the Dash Pro Legacy pinout with correct legacy pinout.Update 2015-11-09:

  • Konekt Dash Pro
  • Right.13 from M1.51 to M1.34 (?35)
  • Right.14 from M1.52 to M1.16
  • Right.11 from M1.54 to --
  • Left.8 UART from -- to UART2_TX
  • Left.8 I2C from -- to I2C0_SDA
  • Left.7 UART from UART2_TX to UART0_CTS
  • Left.6 UART from UART0_CTS to UART2_RX
  • Left.6 I2C from -- to I2C0_SCL
  • Left.5 ADC/DAC from -- to ADC0_SE5B
  • Left.5 UART from UART2_RX to UART2_CTS
  • Konekt Dash
  • Left.17 from U30 to U.24
  • Left.16 from U31 to U.25
  • Left.15 from U29 to U.23
  • Left.3 M1 from -- to 1
  • Left.4 M1 from -- to 2
  • Left.5 M1 from 1 to 58
  • Left.6 M1 from 2 to 59
  • Left.7 M1 from 58 to 62
  • Left.8 M1 from 59 to 60
  • Left.9 M1 from 62 to 36
  • Left.10 M1 from 60 to 27
  • Left.11 M1 from 36 to 28
  • Left.12 M1 from 27 to 29
  • Left.13 M1 from 28 to 35
  • Left.14 M1 from 29 to 18
  • Left.8 UART from -- to UART2_TX
  • Left.8 I2C from -- to I2C0_SDA
  • Left.7 UART from UART2_TX to UART0_CTS
  • Left.6 UART from UART0_CTS to UART2_RX
  • Left.6 I2C from -- to I2C0_SCL
  • Left.5 ADC/DAC from -- to ADC0_SE5B
  • Left.5 UART from UART2_RX to UART2_CTS
